Load Cell Technology

Load Cell Technology in Gold Balances provides accurate and stable weighing performance by using a high-precision sensor that converts weight into an electrical signal. This technology ensures reliable measurements, quick response time, and consistent results, making it suitable for jewellery, laboratory, and commercial weighing applications where dependable performance and efficiency are essential.

Gold Balances - Load Cell Technology

Micron Gold balances are a synthesis of design, performance and convenience. Thanks to sophisticated software and a high-performance load cell, these balances deliver top performance at competitive prices.

Microtech offers high-precision weighing balances and accessories engineered for accuracy, reliability, and durability. Our products are designed to meet the needs of laboratories, industries, and commercial applications, ensuring consistent performance, long-term stability, and user-friendly operation.

Main Features

  • Highly precise HBM Load Cell of Germany.
  • High-contrast graphical LCD display with backlight.
  • External calibration and adjustment function.
  • Strong and stable aluminium die-cast base structure.
  • Dual RS232 serial communication port.

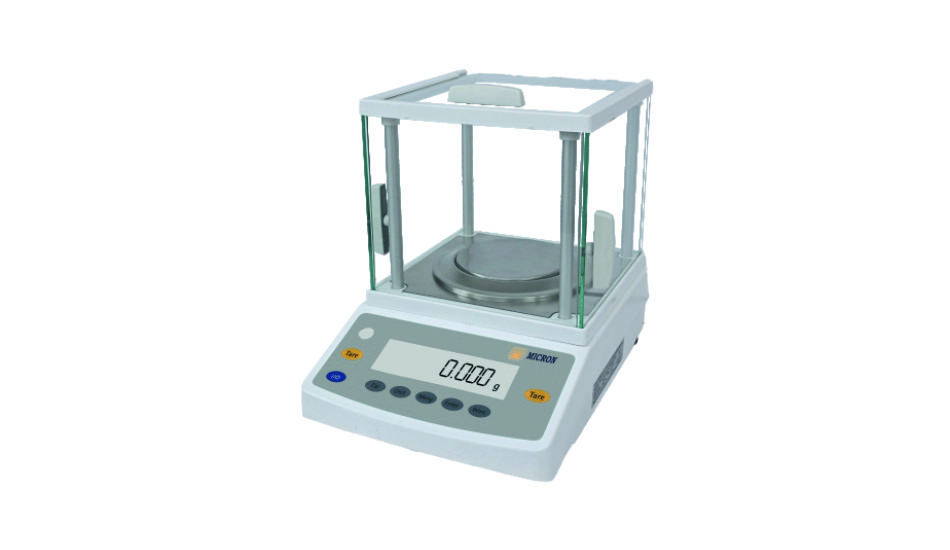

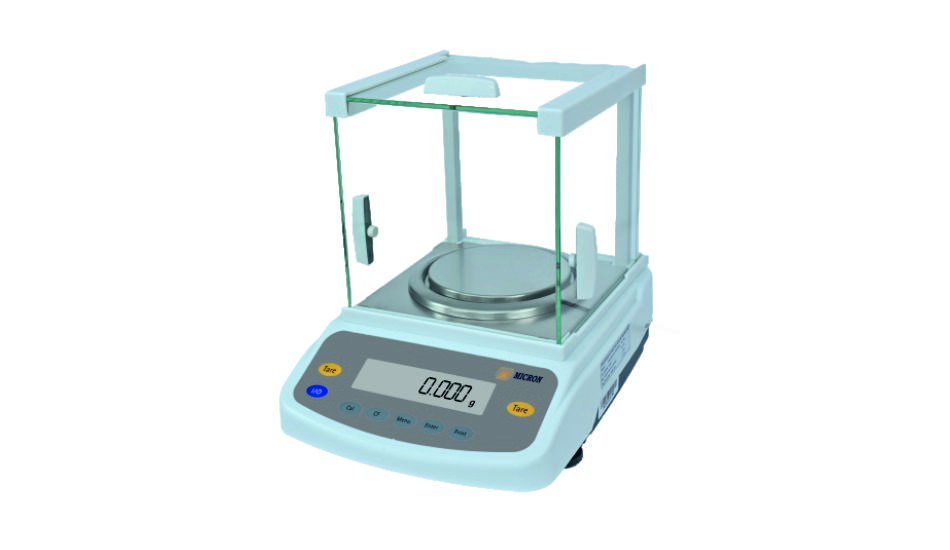

  • Anti-static glass windshield (optional for 150 mm)
  • Lithium-ion battery backup
  • Dimensions (L × W × H): 275 × 190 × 85 mm
  • Dimensions (L × W × H): 290 × 210 × 95 mm

Gold Balances – Load Cell Technology

Model Capacity Readability Calibration Pan Size

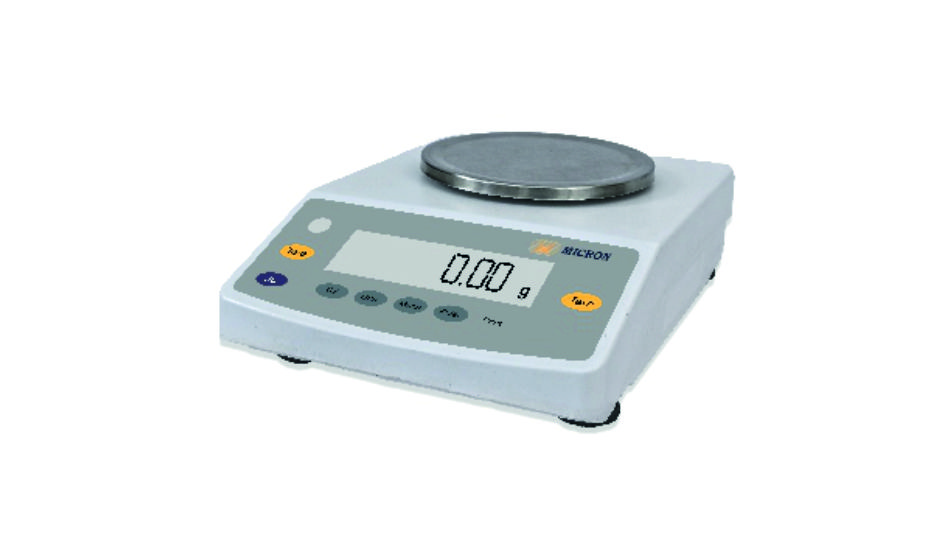

MIC622L 620 g 0.01 g External 150 mm Ø
MIC822L 820 g 0.01 g External 150 mm Ø
MIC1202L 1200 g 0.01 g External 150 mm Ø
MIC1502L 1500 g 0.01 g External 150 mm Ø

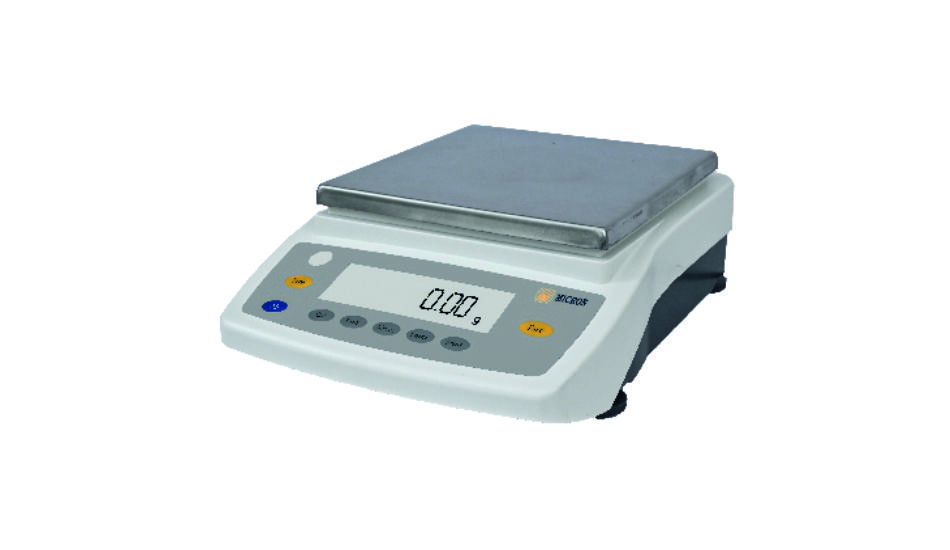

MIC2202L 2200 g 0.01 g External 180×180 mm
MIC3202L 3200 g 0.01 g External 180×180 mm
